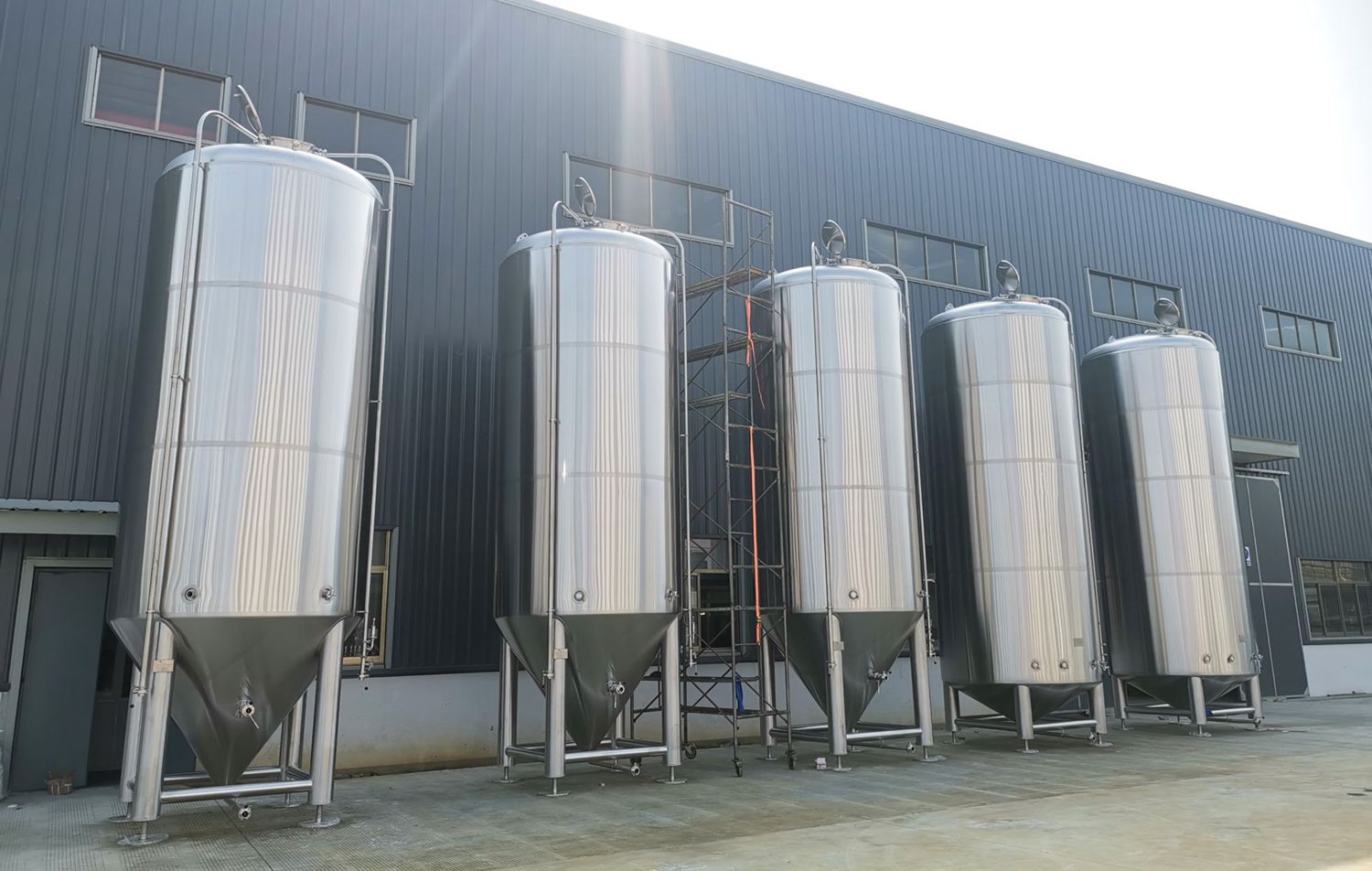

We have the manufacturing capability and expertise to build to towering outdoor tanks. DAYGY has years of experience designing insulated outdoor tanks ranging up to 600 BBL. We offer specialized fermentation tank design, customized specs, and fittings, with on-site installation support to maximize the efficiency of your operation.
304 SS TIG weld construction
2mm Exterior, with a #4 sanitary brushed finish
3mm Interior, with a 2B sanitary finish

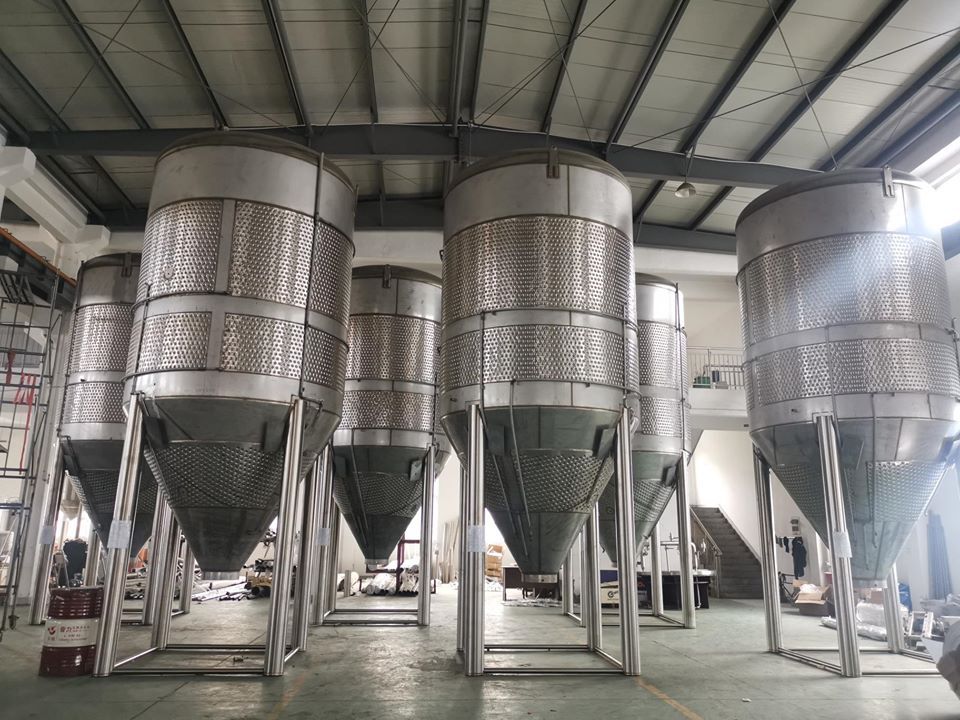

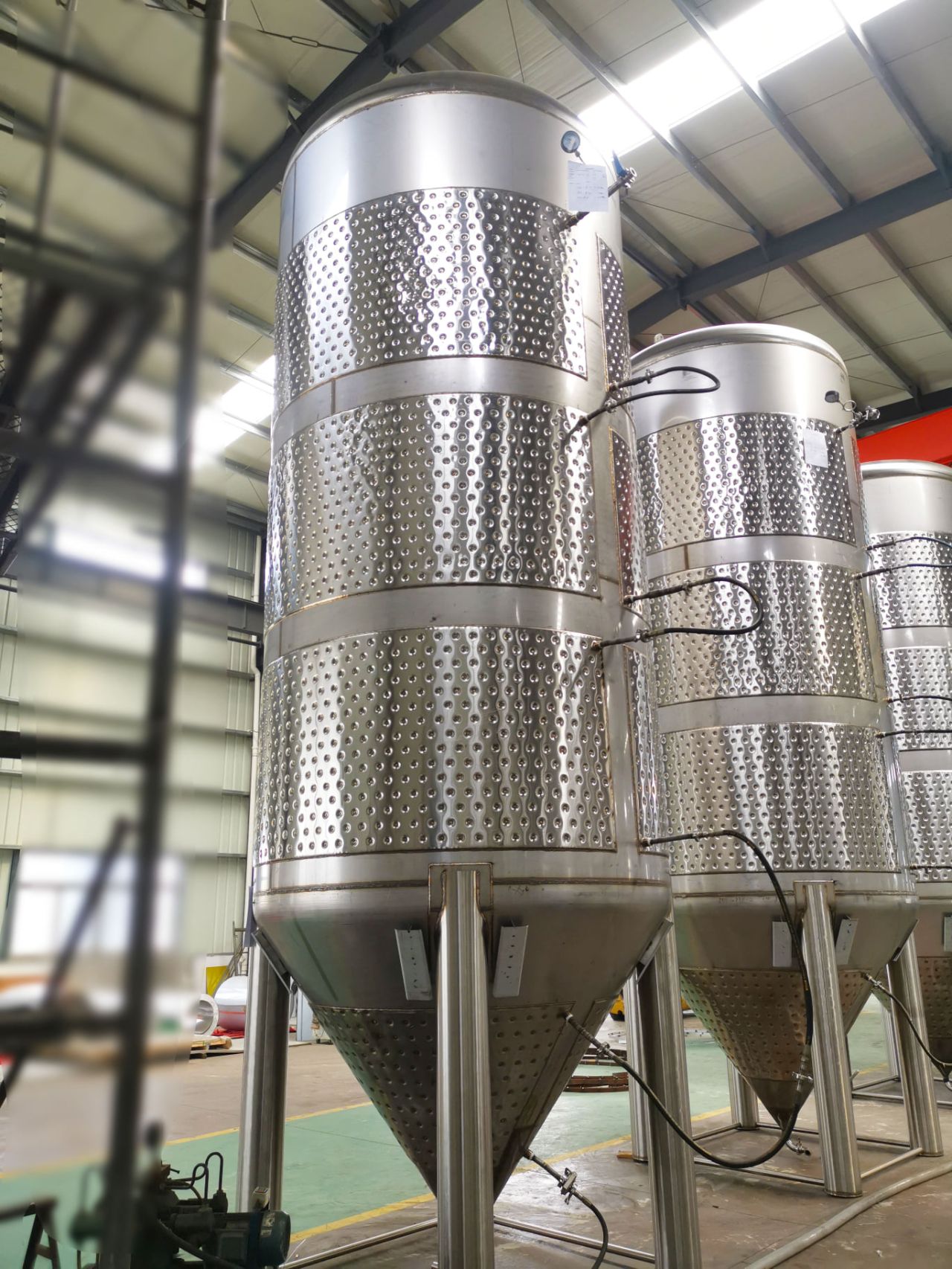

Dual-zone dimple cooling jackets (Tested to 6 bar/90Psi).
80mm/3.15″ Polyurethane Insulation
Operating pressure rated below 1 bar/15Psi (Tested to 2 bar/30Psi)
20% overstated sized headspace
Adjustable reinforced stainless steel legs
Perlick sample valve
Pressure/ Vacuum relief valve
Temperature gauge port
RTD sensor port(1/2″ NPT optional)
4″ and larger dry hop port capabilities
CIP arm and rotating spray ball provides 360° of coverage
CIP arm with integrated pressure gauge
Assembled carbonation stone.
Side Manway door (Top Manway optional)
Racking arm with DIN,
Ladder hooks(10bbl or larger)
